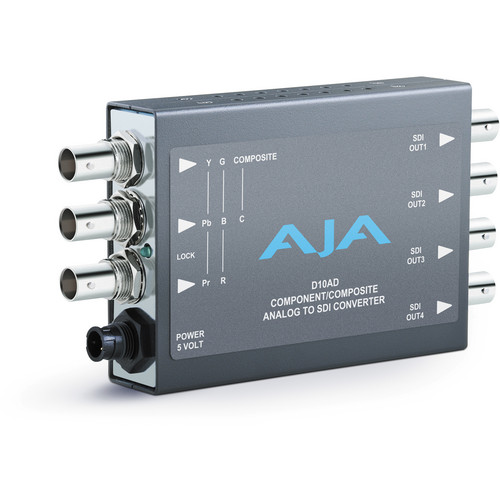

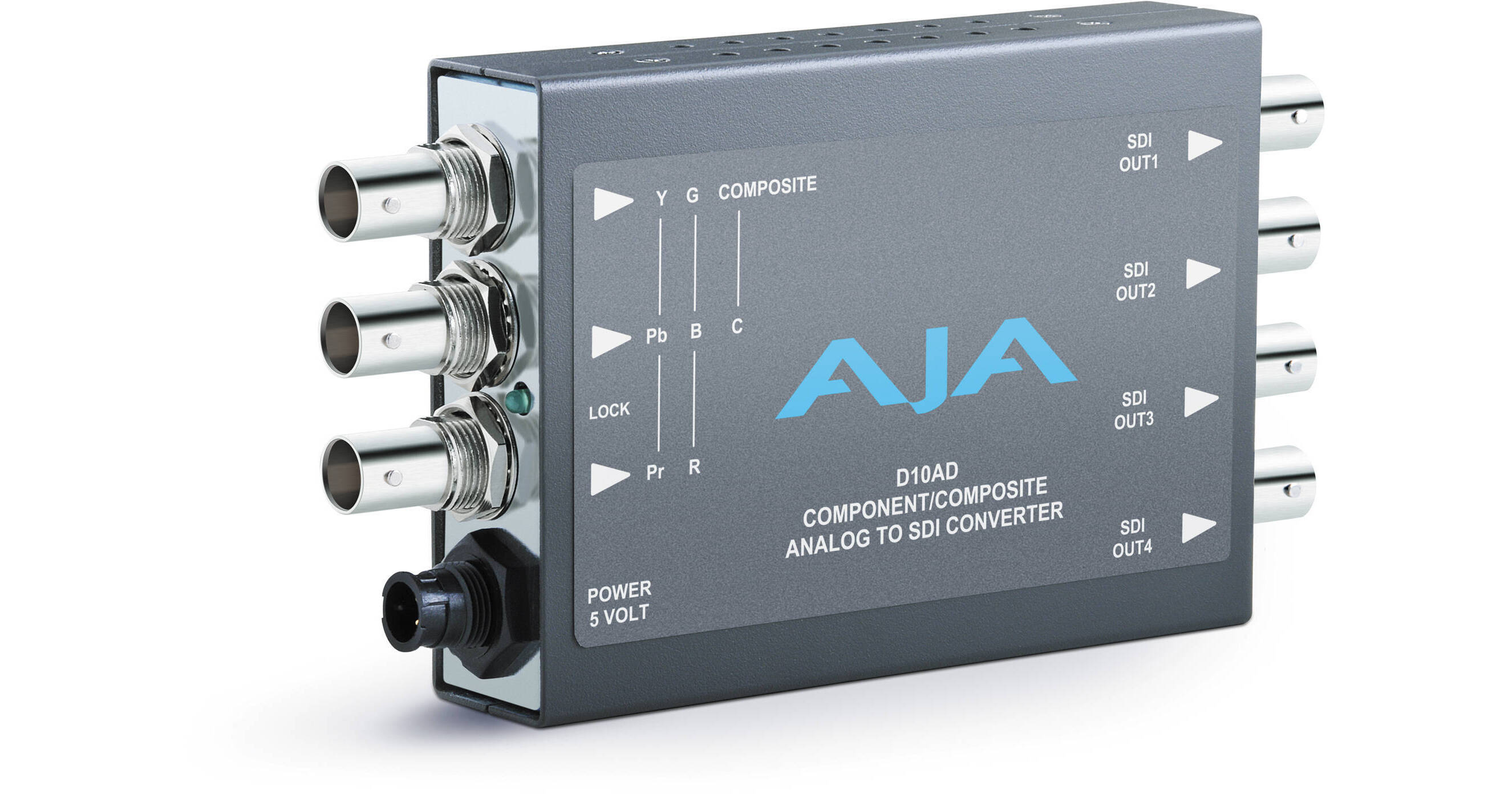

The AJA D10AD Component or Composite Analog to SDI 10-Bit Converter features three BNC input connectors that via an 8-switch dipswitch are configurable to input either Component or Composite signals. The converter converts either of these to four separately buffered SD-SDI outputs. The outputs feature EDH protocol (Error Detection and Handling), which confirms whether every field of video is received correctly.
The converter inputs YPbPr, Betacam, or RGB Component, and NTSC/PAL or Y/C Composite. A 4-Line Adaptive Comb Filter provides high-quality decoding for Composite signals. The filter is switchable to 2-line or notch modes for minimum delays. NTSC or PAL is automatically detected.
Please note: The converter requires a Time Base Correct source. Operation is not recommended from VTRs, laser disks, etc., without Time Base Correction (TBC).
- 10-bit universal A/D conversion
- Inputs are selectable via an 8-switch dipswitch
- Inputs YPbPr, Betacam, or RGB Component / NTSC/PAL or Y/C Composite
- 4 SDI outputs with EDH
- 4-Line Adaptive Comb Filter for Composite signals
- Full 10-bit data path, 2x oversampling
- Color Bar Generator
- Input Video Format
- Pedestal Present / Not Present
- Narrow / Wide Blanking
- AGC On/Off
- EDH On/Off
- Test Pattern
