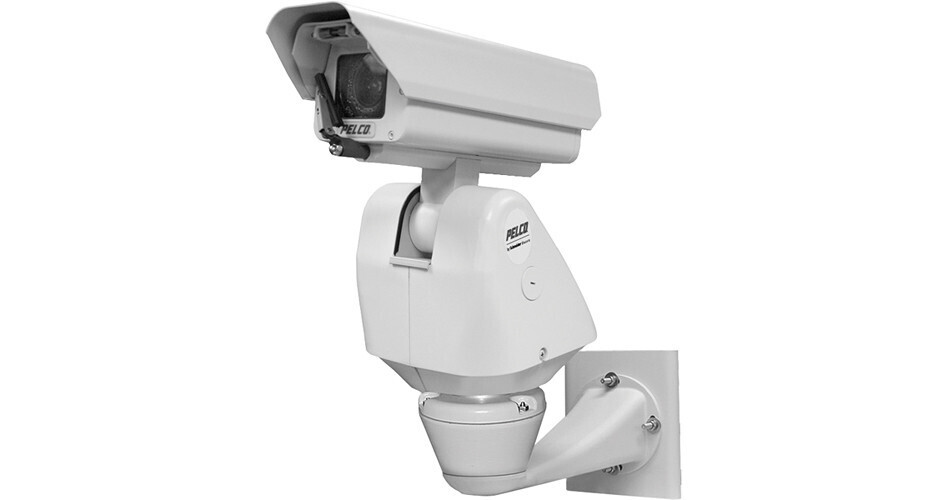

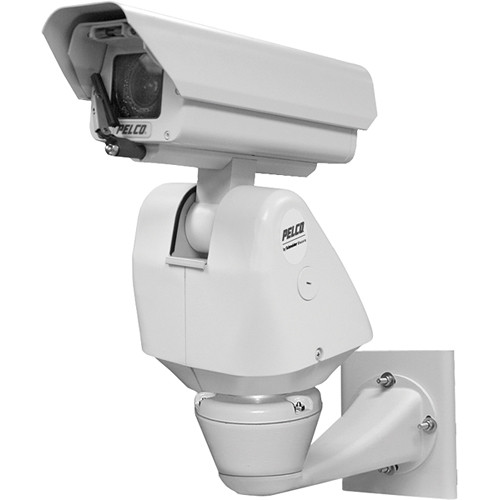

Pelco ES41362W Esprit Wall Mount Camera (NTSC)

BH #PEES41362W • MFR #ES4136-2W
Print
Pelco ES41362W Esprit Wall Mount Camera (NTSC)
No Longer Available
No Store Display
Protect Your Gear
Add a protection plan from $337.99
See Options
Ask an Expert
800-606-6969

Pelco ES4136-2W Overview

The Pelco ES41362W Esprit Wall Mount Camera (NTSC) features a receiver, pan / tilt capability, and an enclosure with Integrated Optics Package (IOP) with a wiper in a single and easy-to-install system.

Ideal for a wide range of applications, this camera offers color or black & white images at a resolution of 540 TVL. It also features an infrared cut filter, 432x zoom (36x optical, 12x digital), electronic image stabilization, and wide dynamic range. Powder-coated aluminum construction makes the camera suitable for either indoor or outdoor applications. The system has an absolute operating temperature range of -50 to 122°F (-45 to 50°C). Within two hours after power-up, the entire unit can de-ice and be operational from a temperature of –13°F (–25°C).

The variable pan and tilt speeds range from 0.1 to 40°/sec in manual pan mode and 0.1 to 20°/sec in manual tilt. The pan preset and turbo speeds are 100°/sec in wind speeds of 50 mph (80 kph), and 50°/sec in the 90 mph (145 kph) wind-speed profile. Tilt preset speed is 30°/sec. It is capable of 360° of continuous pan rotation. The tilt range allows for horizontal viewing of 36 to –85°. There are 256 configurable preset positions with a preset accuracy of 0.1°.

The included wiper is completely integrated into the enclosure and does not interfere with the viewing range of the system. The wiper can be configured to delay between wipes and to automatically shut off after a specified time period. The wiper design also allows for easy replacement of the wiper blade. A built-in heater, window defroster / defogger, sun shroud, and insulation blanket are standard features on this unit. It also includes open collector auxiliary outputs that function for two seconds before deactivating. The system is available with an input voltage of 24 VAC. The camera also has a power-up recovery mode that allows the user to specify what operation the system will resume whenever the power is cycled.


Wall mount models include Esprit EWM wall mount. Optional mounting adapters for corner, pole, and parapet applications are available.

Receiver, pan / tilt, and enclosure with Integrated Optics Package (IOP)
Day/Night, 540 TVL, auto focus, 128x Wide Dynamic Range (WDR), motion detection, image enhancement, and electronic image stabilization
Integrated window wiper with configurable delay and shut-off
Preset positioning accuracy of ± 0.1, Variable speed pan: 0.1 to 100°/sec with proportional pan
Window blanking, multishaped
Internal scheduling clock
On-screen compass, tilt, and zoom display
Auto tracking
Tilt range of 36 to -85° from horizontal
Password protection
Deterrent Surveillance
Multiprotocol operation (Coaxitron, RS-422 Pelco D and Pelco P protocols)
Digital position and zoom control and feedback using Pelco D protocol
Integral camera enclosure
Operational in 90 mph (145 kph) winds can withstand wind velocity up to 130 mph (209 kph)
Pan preset speed of 100°/sec in 50 mph (80 kph) winds and 50°/sec in 90 mph (145 kph) winds
Variable scan speeds (1 to 40°/sec)
Translator boards for selected competitive protocols
Easy to Install: Quick and simple electrical connections
24 VAC
Full continuous-duty warranty
850 nm and 950 nm active IR illumination focus algorithms
256 configurable presets with labels
Auto, frame, and random scan
Configurable power-up mode, park, manual limit stops (pan), and scan limit stops (pan)
Patterns: Up to 8, on-screen, user-defined configurable patterns; includes pan, tilt, zoom, and preset functions
Proportional pan / tilt: Continually decreases pan / tilt speeds in proportion to depth of zoom
8 zones (configurable in size) can be labeled with up to 20 characters each
Window blanking: Up to 8, four-sided, user-defined shapes
10" (254mm) Integrated enclosure with pre-assembled IOP camera
Sun shroud, heater / window defroster, and insulation all standard
1x auxiliary output
Electronic image stabilization
Image enhancement
Multilingual menus (English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, Czech, and Asian language packages: Chinese, Japanese, and Korean)
Software update and setup
Configurable locations of labels and on-screen displays
Configurable zoom speeds
Low lux noise reduction (reduces noise in low light)
Auto sensing protocol (Coaxitron, RS-422 Pelco P and Pelco D, Sensormatic, Vicon); accepts other control protocols with optional translator card
Gray polyester powder-coat finish

Pelco ES4136-2W Specs

Camera
Scanning System
Progressive
Image Sensor
1.25" (31.75 mm) CCD
Effective Pixels (H x V)
768 x 494
Horizontal Resolution
>540 TVL
Lens
f/1.4 (focal length, 3.3 to 119 mm optical)
Zoom
36x optical, 12x digital
Zoom Speed
Optical range: 3.2 / 4.6 / 6.6 sec
Horizontal
57.2° at 3.3 mm wide zoom;
Angle of View: 1.7° at 119 mm telephoto zoom
Focus
Automatic with manual override
Sensitivity
Maximum at 35 IRE: 0.02 lux at 1/2 sec shutter
0.55 lux at 1/60 sec shutter (color)
0.018 lux at 1/2 sec shutter (color)
0.00018 lux at 1/2 sec shutter (B&W)
Sync System
AC line lock, phase adjustable using remote control, V-Sync
White Balance
Automatic with manual override
Shutter Speed
Automatic manual 1/2 to 1/30,000
Iris Control
Automatic with manual override
Gain Control
Automatic / Off
Video Output
1 Vpp, 75 Ω
Video Signal-to-Noise Ratio
>50 dB
Electronics
Image Stabilization: Integrated
Wide Dynamic Range
128x
Electrical
Input Voltage
24 VAC
Input Voltage Range
± 10%
Power Consumption
Maximum 70 VA per system
Heater/Defroster
Thermostatically controlled
Electrical
Connections: 2 power source connections made at mount location with wire splices and 1 ground wire splice; 1 BNC receptacle and 4 wire splices at mount location for RS-422 Pelco D and Pelco P protocols; 2 wire splices for open collector auxiliary output
AUX 2
Open collector output with 2-second activation; connected relay must require no more than 32 VDC and 40 mA to energize relay coil; wire length between Esprit SE and relay must be less than 100' (30.48 m)
Video
Coaxial Cable and Wiring Distances:
Cable Type*: RG59 / U, RG6 / U, RG11 / U
Maximum Distance: 750' (229 m), 1,000' (305 m), 1,500' (457 m)
*Minimum cable requirements: 75 Ω impedance; all copper center conductors; all copper braided shields with 95% braid coverage.
Mechanical
Pan Movement
360° Continuous pan rotation
Vertical Tilt
Unobstructed 36 to -85°
Pan/Tilt Speed
Variable: 0.1 to 40°/sec variable-speed operation
100°/sec turbo
Tilt
0.1 to 30°/sec variable-speed operation
Preset Speeds
Pan: 100°/sec
Tilt: 30°/sec
Camera Mounting
Integrated camera sled assembly
Latches
One link-lock, #3 stainless-steel latch; can be secured with padlock (not supplied)
General
Construction
Die-cast, extruded and sheet aluminum; stainless steel hardware
Viewing Window
0.23" (5.84 mm) thick, optically clear, polycarbonate with proprietary impact-resistant UV rated coating
Operating Temperature
-50 to 122°F (-45 to 50°C) for sustained system operation or 140°F (60°C) (absolute maximum; within two hours after power-up, the entire unit can de-ice and be operational from a temperature of -13°F (-25°C)
Operating Environment
Will remain operational in 90 mph (145 kph) wind conditions; withstands 130 mph (209 kph)
Certifications
• CE, Class B
• FCC, Class B
• UL / cUL Listed
• C-Tick
• Meets NEMA Type 4x and IP66 standards
• U.S. Patents 340,940 and 5,224,675
Weight
With Wiper and IOP: 10.4 kg (23 lb)
