Matrix Switch MSC-5-1664 16 x 64 VGA RGBHV Video Routing Switcher

BH #MAMSC51664 • MFR #MSC-5-1664
Print
Authorized Dealer

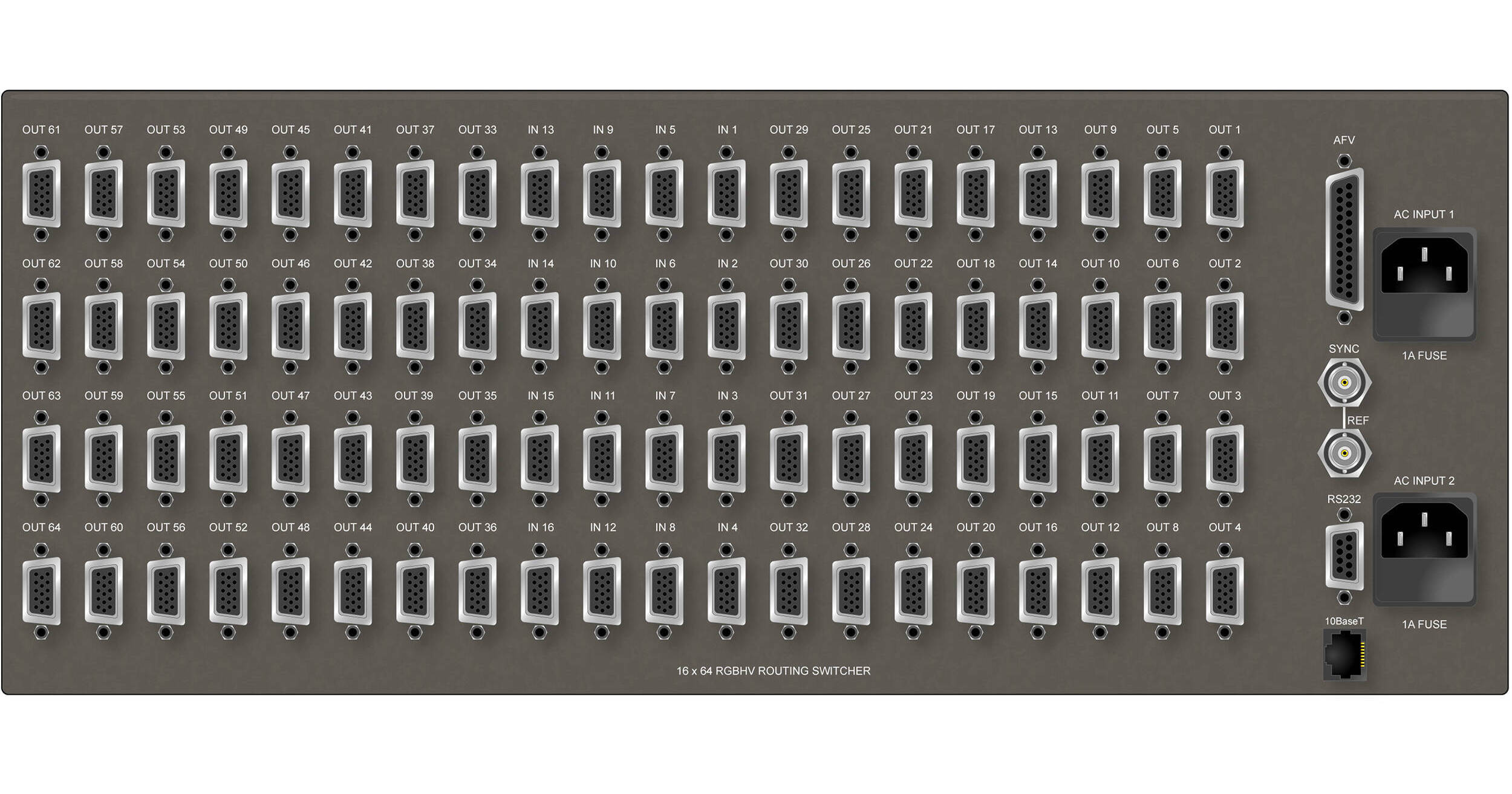

Matrix Switch MSC-5-1664 16 x 64 VGA RGBHV Video Routing Switcher
No Longer Available
No Store Display

Business Financing Options

Protect Your Gear
Add a protection plan from $939.99
See Options
Ask an Expert
800-606-6969

Matrix Switch MSC-5 Overview

The Matrix Switch Corporation MSC-5-1664 16 x 64 VGA RGBHV Video Routing Switcher offers a wide signal bandwidth and low crosstalk technology, allowing for artifact-free images at almost any image resolution including QXGA. For applications that require a very large number of inputs or outputs, this router can be cascaded up to 256 VGA inputs by 16 VGA outputs, with no degradation of overall performance. It can also be combined with Matrix Switcher’s Analog Audio or AES digital audio routers, by connecting them with a D25 straight through cable. This 16 x 64 switcher consists of audio and control panel options. It has no audio (video only), AES3 S/PDIF 75Ω digital audio on BNC I/O, AES3 Balanced 110Ω digital audio, and unbalanced or balanced stereo analog audio.

Note:
Contact Matrix Switch Corporation regarding availability of these systems before placing an order.
HD-15 VGA I/O connectors save space and eliminate the need for breakout cables
Store and recall up to 10 non-volatile presets
Mean Time to Repair (MTTR) is less than 1 minute
Local and/or remote control panels
Vertical interval clean switch
RS-232 control via simple ASCII based protocol
TCP/IP Ethernet including a built-in web page and SNMP control
Complies with all relevant FCC, U/L, and CE requirements
Modern JavaScript web page interface
Control via simple text based protocol over TCP/IP via Ethernet port, RS-232, or web page interface
Can be used with Matrix Switch control panels and/or any third-party control system (AMX, Crestron, Calypso, Leightronix, etc.)
Applications include command and control centers, homeland security monitoring, emergency response centers, and large multi-screen venues

Matrix Switch MSC-5 Specs

Video
Input Impedance
RGB: 75 Ω ±1%
HV: 75 Ω Â ±1%
Input Return Loss
RGB: > -35 dB at 5 MHz
HV: > -35 dB at 5 MHz
Nominal Input Level
RGB: 1 Vpp
HV: 2 Vpp
Maximum Input Level
RGB: 1.8 Vpp
HV: 6 Vpp
Output Return Loss
RGB & HV: > -35 dB at 5 MHz
Nominal Output Level
RGB: 1 Vpp
HV: 2 Vpp
Uniformity
RGB & HV: < ±0.5% (gain)
Frequency Response
RGB: ±0.1dB to 10 MHz
±3 dB to 100 to 400 MHz depending on signal level
HV: ±0.1 dB to 10 MHz
±3 dB to 50 MHz
Crosstalk
RGB:
< -60 dB at 5 MHz
< -40 dB at 50 MHz
< -25dB at 100 MHz
HV:
< -50 dB at 5 MHz
< -30 dB at 20 MHz
AES Digital Audio Inputs
Signal Type
75 Ω unbalanced or 110 Ω balanced
Connector Type
BNC or multi-pin, 3-pin breakout adapters
Level
100 mV to 10 Vpp
CMR
> 25 V
Impedance
> 30 K Ω
Level
+8 dBm nominal
+24 dBm maximum
Impedance
< 30 Ω
Level
+8 dBm nominal
+24 dBm maximum
Frequency Response
10 Hz to 50 KHz
±0.1 dB
Humidity
10 to 100% non-condensing
Power Consumption
7 VA typical
AC Voltage
90 to 240 VAC, 50 to 60 Hz
Power Requirement
70 VA
Size
4 RU
Packaging Info
Package Weight
2 lb
Box Dimensions (LxWxH)
24 x 18 x 12"
