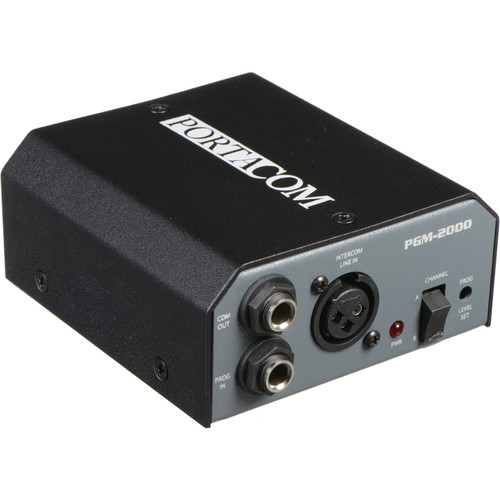

The PortaCom PGM-2000 2-Channel Program Insertion Station from Anchor Audio Home is designed for use with the PortaCom intercom system. This program insertion station provides the means to insert a program audio (from a tape player, mixer, or stage mic) onto the intercom line.

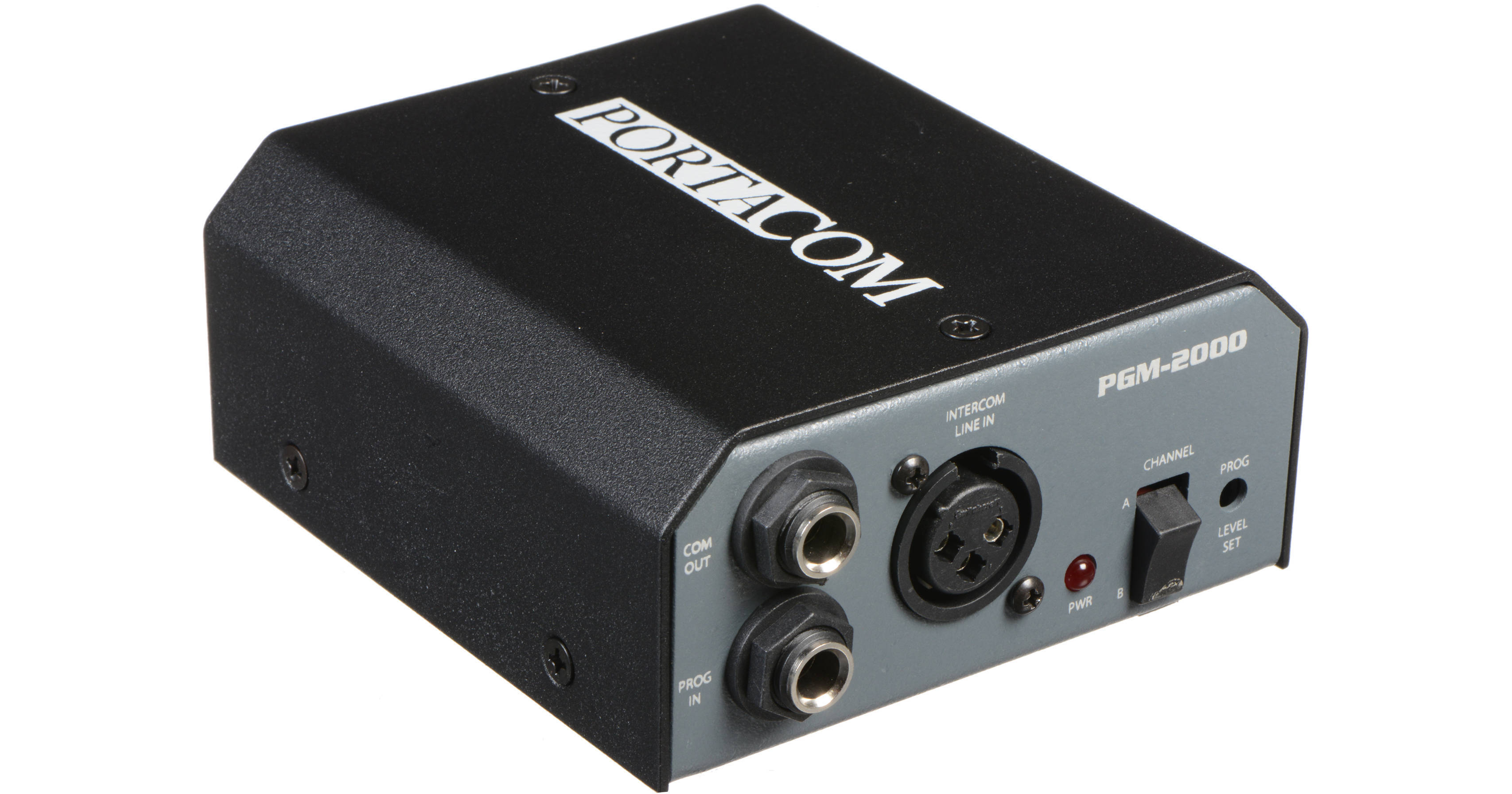

The front panel has the main operator controls including the Channel A/B switch, Power Indicator, and Program Level Setting. It also has connectors for the Intercom Line In, Program In, and Intercom Out.
The rear panel has 3 connectors including the Loop Thru for system connections and expansion, Normal A / Isolated C, and a balanced Intercom Line Out Only connection.
Program In Connector: The 1/4” phone connector accepts the line-level output from a mixer or tape player, and inserts that music / program material into the connected intercom system.
Intercom Out Connector: The 1/4” phone connector provides a line-level composite of the intercom signal as an output to connect to a recorder or a remote amplified speaker.
Channel A/B Switch: Select the channel (A or B) when the program material will be inserted in the system.
When using the Normal A / Isolated C output, no program material will be on this output when the channel switch is set to B position.
Program Level Setting Adjustment Screw: Adjust the volume level of inserted program material as heard on the intercom system. Turn clockwise to increase the volume of the program material and counter-clockwise for lower volume.
Power LED (Red): Indicator lights when power source is connected to the PGM-2000 station (There is no power on/off switch; power is supplied and controlled by the system’s PC-2000 2-Channel Power Console).
Normal A / Isolated C Connector: It is a male XLR-3 connector. When the Channel Switch is set to A the output functions like a standard intercom output (of the intercom material). No program material from the system will be inserted into this output when the Channel Switch is set to B. Connect belt packs (via B3-2000 Branch Box) to this input for Isolated Channel C operation.
Intercom Line Out Connector: It is a transformer-balanced male XLR-3 connector that has the composite intercom signal and inserted program material for connection to an alternate location, recorder, or mixer.
