Pyle Pro PMX1609 16-Channel Professional Digital (DSP) Console Stereo Mixer

BH #PYPMX1609 • MFR #PMX1609
Print
Pyle Pro PMX1609 16-Channel Professional Digital (DSP) Console Stereo Mixer
No Longer Available
No Store Display
Ask an Expert
800-606-6969

Pyle Pro PMX1609 Overview

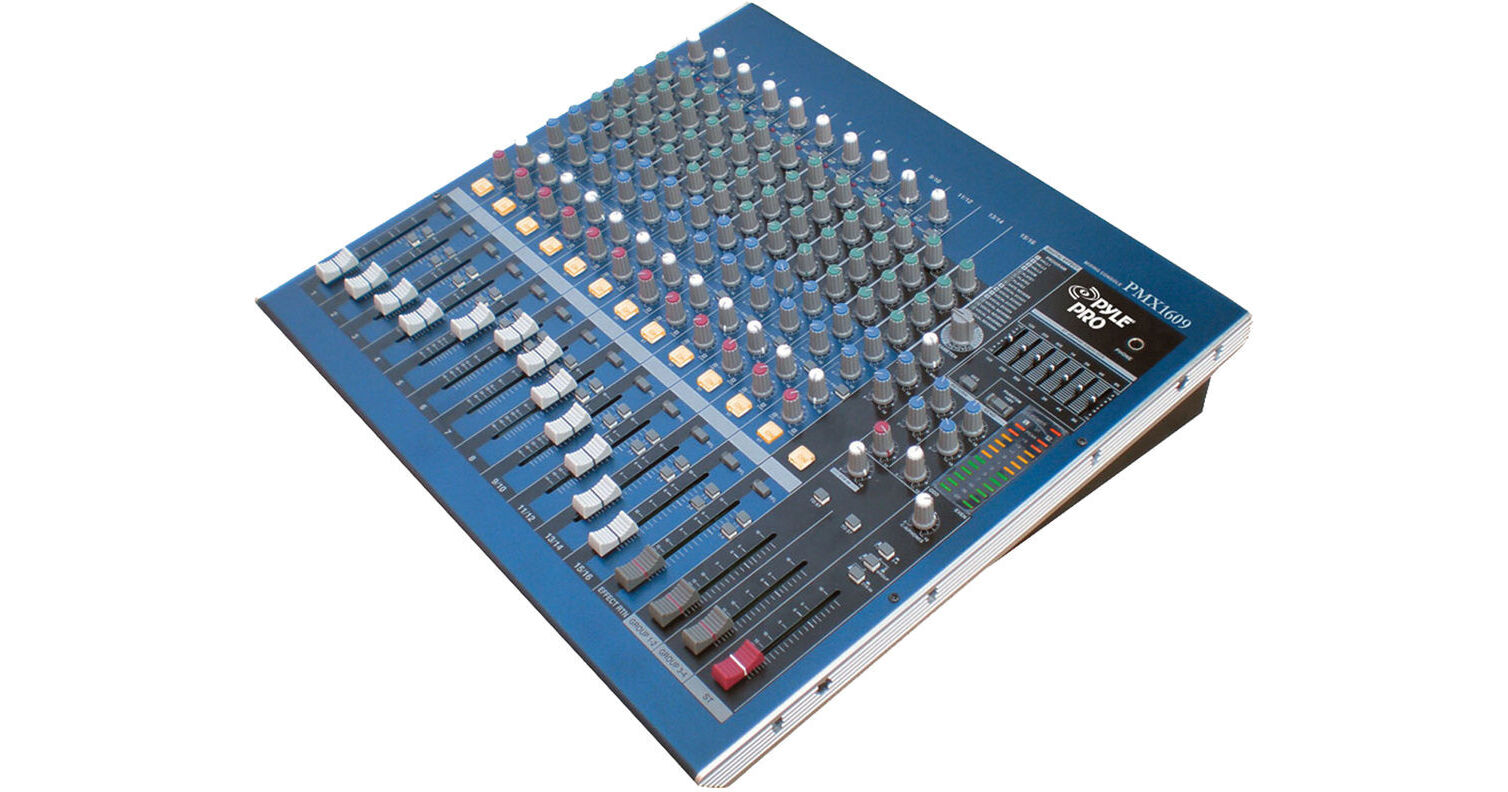

The PMX1609 16-Channel Professional Digital (DSP) Console Stereo Mixer from Pyle Pro combines ease of operation with support for multiple usage environments, and is suitable for SR setups, installed systems, and many other such applications. It provides 16 input channels and mixes the signals into stereo and group outputs.

With built-in, high-quality digital effects, the PM1609 can deliver a wide range of sound variations even when used on its own. It includes an effect send jack that can be used to connect an external effector. It also includes dual Aux send jacks and a single return jack. Phantom power supply enables easy connection to condenser microphones that run on external power.

The PM1609 provides channel-specific insert I/O jacks for input channels 1 to 8. These jacks make it possible to insert different effectors into different channels. Input channels 1 to 8, 9/10, and 11/12 are each equipped with both XLR mic input jack and a TRS phone-type line jack. Input channels 13/14 and 15/16 are each equipped with both a TRS line input jack and an RCA line input jack. This wide assortment of connectors enables connections to many different devices, from microphones to line-level devices to stereo-output synthesizers.

16 input channels
10 Mic / 4 stereo / line inputs XLR-TRS 1/4" phone / RCA inputs
High-precision mic preamp
7-band stereo graphic equalizer
48V phantom power switch
3-band channel equalizer (high-mid-low)
Internal digital effects processor
2 x 12-segment LED meter for level monitoring
Peak LED indicator level input
Low-noise, high-precision mic preamps
Illuminated On/Off switches
Aux effect sends/returns
PFL (Pre-Fader Listen) switch
Rack mount brackets for flexibility
AC 110 / 220 power adapter

Pyle Pro PMX1609 Specs

General
Frequency Characteristics
ST Out: 20 Hz to 20 kHz, 1 dB, -3 dB @ 4 dBu, 600 Ω (with gain control at minimum level)
Total Harmonic Distortion
ST Out: 0.1% (THD + N) @ 14 dBu, 20 Hz to 20 kHz, 600 Ω (with gain control at maximum level)
Hum & Noise
Equivalent Input Noise (Ch 1 to 8): -128 dBu
Residual Output Noise (ST Out): -100 dBu
ST, Group Master fader at nominal level; all Ch assign switches off: -88 dBu (92 dB S/N)
Aux, Effect master control at nominal level; all channel mix controls at minimum level: -81 dBu (85 dB S/N)
ST, Group Master fader and one Ch fader at nominal level (Ch 1 to 8): -64 dBu (68 dB S/N)

Rs = 150 Ω
Measured with 12.7 kHz, -6 dB/octave, low-pass filter (equivalent to 20 kHz, filter)
Ch mic input to ST, Group out/Aux, Effect send
Maximum Voltage Gain
60 dB Ch Mic Input to Ch Insert Out
84 dB Ch Mic Input to Group out/ST Out (Ch to ST)
94 dB Ch Mic Input to ST Out (Group to ST)
62.2 dB Ch Mic Input to Rec Out (Ch to ST)
76 dB Ch Mic Input to Aux Send (Pre)
86 dB Ch Mic Input to Aux Send (Post)/Effect Send
58 dB Ch Line Input to Group Out/ST Out (Ch to ST)
84 dB Ch Mic Input to Group Out/ST Out (Ch to ST)
58 dB Ch Line Input to Group Out/ST Out (ST to ST)
47 dB Ch Line Input to Aux Send (Pre)
57 dB Ch Line Input to Aux Send (Post)/Effect Send
34 dB Ch Input to Group Out/ST Out (ST to ST)
16 dB Aux Return to ST Out
9 dB Aux Return to Aux Send
27.8 dB 2TR Input to ST Out
Monaural/Stereo Input Gain Control
44 dB, variable
Monaural/Stereo High Pass Filter
80 Hz, 12 dB/octave
Crosstalk
-70 dB between input channels @ 1 kHz
-70 dB between input/output channels (Ch input) @ 1 kHz
Monaural Input Channel Equalization
Maximum Variation (Ch 9/10 to 15-16):
±15 dB
High: 10 kHz shelving
Mid: 0.25 to 5 kHz peaking
Low: 100 Hz shelving
Stereo Input Channel Equalization
Maximum Variation (Ch 9/10 to 15/16):
±15 dB
High: 10 kHz shelving
Hi-Mid: 3 kHz peaking
Lo-Mid: 800 Hz peaking
Low: 100 Hz shelving
Graphic Equalizer
7-band (125, 250, 500, 1k, 2k, 4k, 8k)
Maximum variation ±12 dB
Internal Digital Effects
16 programs, parameter control
Monaural/Stereo Input Peak Indicator
On Each Channel: Red indicator lights if post-EQ signal (on ST channels, if either post-EQ signal or post-mic-amp signal) comes within 3 dB of the clipping level
Level Meters
2 x 12-point LED meters [Stereo (L, R)]
Peak Point: Red indicator
5, 3, 1, and 0 Points: Yellow indicators
-1, -3, -5 , -7, -10, -15, -20: Green indicators
Phantom 48 VDC Power
Supplied with phantom 48 V switch is On (balanced input)
Power Supply
AC 110/220 V adapter
Power Consumption
51 W
Input
Connectors
Mic (Ch 1 to 8): XLR-3-31 type (balanced)

Line (Ch 1 to 8): Phone Jack (TRS) (balanced [T- hot, R- cold, S- ground])

ST Ch Mic [Ch 9(L)/Ch 10(R), Ch 11(L)/Ch 12(R)]: XLR-3-31 type (balanced)

ST Ch Line [Ch 9(L)/Ch 10(R), Ch 11(L)/Ch 12(R)]: Phone Jack (unbalanced)

ST Ch [Ch 13(L)/Ch 14(R), Ch 15(L)/Ch 16(R)]: Phone Jack (unbalanced), RCA pin jack

Ch Insert (Ch 1 to 8): Phone Jack (TRS) (unbalanced [T- out, R- cold, S- ground])

Aux Return (L, R): Phone Jack (TRS) (balanced [T- hot, S- ground])

2TR (L, R): RCA pin jack
Impedance
Mic (Ch 1 to 8): 3 kΩ
Line (Ch 1 to 8): 10 kΩ
ST Ch Mic [Ch 9(L)/Ch 10(R), Ch 11(L)/Ch 12(R)]: 3 kΩ
ST Ch Line [Ch 9(L)/Ch 10(R), Ch 11(L)/Ch 12(R)]: 10 kΩ
ST Ch [Ch 13(L)/Ch 14(R), Ch 15(L)/Ch 16(R)]: 10 kΩ
Ch Insert (Ch 1 to 8): 10 kΩ
Aux Return (L, R): 10 kΩ
2TR (L, R): 10 kΩ
Sensitivity
Mic Input (Ch 1 to 8):
-80 dBu (0.078 mV) @ -60 dB gain
-36 dBu (12.3 mV) @ -16 dB gain

Line Input (Ch 1 to 8):
-54 dBu (1.55 mV) @ -34 dB gain
-10 dBu (245 mV) @ +10 dB gain

ST Ch Mic Input [Ch 9(L) Ch 10(R) Ch 11(L) Ch 12(R)]:
-80 dBu (0.078 mV) @ -60 dB gain
-36 dBu (12.3 mV) @ -16 dB gain

ST Ch Line Input [Ch 9(L) Ch 10(R) Ch 11(L) Ch 12(R)]:
-54 dBu (1.55 mV) @ -34 dB gain
-10 dBu (245 mV) @ +10 dB gain

ST Ch Input [Ch 13(L) Ch 14(R) Ch 15(L) Ch 16(R)]: -30 dBu (24.5 mV)

Ch Insert IN (Ch 1 to 8): -20 dBu (77.5 mV)

Aux Return (L, R): -12 dBu (195 mV)

2TR IN (L, R): -26 dBu (50.1 mV)
Maximum Input Level
Mic (Ch 1 to 8):
-40 dBu (7.75 mV) @ -60 dB
+4 dBu (1.23 V) @ -16 dB

Line (Ch 1 to 8):
-14 dBu (155 mV) @ -34 dB
+30 dBu (24.5 V) @ +10 dB

ST Ch Mic [Ch 9(L)/Ch 10(R), Ch 11(L)/Ch 12(R)]:
-40 dBu (7.75 mV) @ -60 dB
-10 dBu (245 mV) @ -16 dB

ST Ch Line [Ch 9(L)/Ch 10(R), Ch 11(L)/Ch 12(R)]:
-14 dBu (155 mV) @ -34 dB
+30 dBu (24.5 V) @ +10 dB

ST Ch [Ch 13(L)/Ch 14(R), Ch 15(L)/Ch 16(R)]: +10 dBu (2.45 V)

Ch Insert (Ch 1 to 8): +20 dBu (7.75 V)

Aux Return (L, R): +24 dBu (12.3 V)

2TR (L, R): +10 dBV (3.16 V)
Output
Connectors
ST (L, R): XLR-3-32 type (balanced), Phone Jack (TRS) (balanced [T- hot; R- cold; S- ground])

Group (1-4), Aux Send (1-2), Effect Send: Phone jack (TRS) (impedance balanced [T- hot; R- cold; S- ground])

Ch Insert (Ch 1 to 8): Phone jack (TRS) (unbalanced [T- hot; R- in; S- ground])

REC (L, R): RCA pin jack

C-R (L, R): Phone jack (TRS) (impedance balanced [T- hot; R- cold; S- ground])

Phones: Stereo phone jack
Impedance
ST (L, R): 150 Ω
Group (1-4), Aux Send (1-2), Effect Send: 150 Ω
Ch Insert (Ch 1 to 8): 150 Ω
REC (L, R): 600 Ω
C-R (L, R): 150 Ω
Phones: 100 Ω
Maximum Output Level
ST (L, R): +24 dBu (12.3 V)
Group (1-4), Aux Send (1-2), Effect Send: +20 dBu (7.75 V)
Ch Insert (Ch 1 to 8): +20 dBu (7.75 V)
REC (L, R): +10 dBV (3.16 V)
C-R (L, R): +20 dBu (7.75 V)
Phones: 75 mW
Dimensions & Weight
Dimensions
16.7 x 4.2 x 16.4" (42.3 x 10.8 x 41.7 cm)
Weight
12.1 lb (5.5 kg)
Packaging Info
Box Dimensions (LxWxH)
20.3 x 20 x 8"
