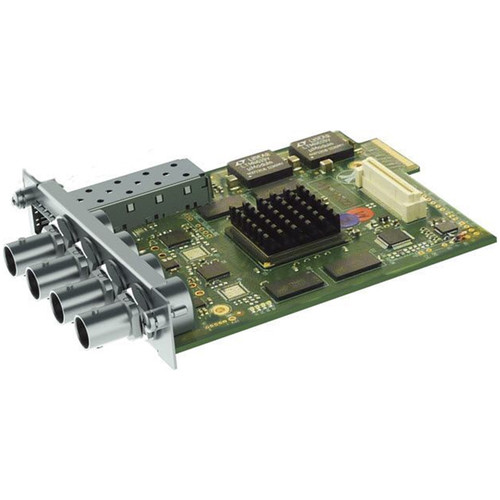

PHABRIX Analyzer & Generator Module for Rx Series T&M Instruments

BH #PHABRIXRAG • MFR #PHRXM-AG
Print
PHABRIX Analyzer & Generator Module for Rx Series T&M Instruments
Key Features
  • HD-SDI, SD-SDI Support
  • Single Analyzer Input
  • Picture Viewer for Confidence
  • Vectorscope for Color Monitoring
The Leader PHABRIX Analyzer & Generator Module for Rx Series T&M Instruments allows a single connected SDI or an optical video signal to be monitored continuously, and allows the generation of a single SDI video test signal. The analyzer functionality allows 2 concurrently connected SD-SDI or HD-SDI inputs to be monitored in the form of a picture, vectorscope, and waveform monitor. 16 channels of embedded audio can also be monitored and the levels can be inspected.
More Details
Special Order
Expected availability: 2-4 Weeks
No Store Display
$3,865.00
OR
$323/mo. suggested payments for 12 Mos.§ when you use the Payboo credit card. Learn More
This item cannot be canceled or returned.
Add to Cart
Free Standard Shipping

Business Financing Options

Ask an Expert
800-606-6969

PHABRIX PHRXM-AG Overview

The Leader PHABRIX Analyzer & Generator Module for Rx Series T&M Instruments allows a single connected SDI or an optical video signal to be monitored continuously, and allows the generation of a single SDI video test signal. The analyzer functionality allows 2 concurrently connected SD-SDI or HD-SDI inputs to be monitored in the form of a picture, vectorscope, and waveform monitor. 16 channels of embedded audio can also be monitored and the levels can be inspected.

This module provides a single video/audio signal generator that can be set to any one of 32, 10-bit (12-bit with 3G-SDI & Advanced Formats PHRXO-3G; sold seperately) line-based, pathological, or zone plate test signals as well as user-defined test signals. Audio test signals include 17 fixed test tones (100 Hz to 20 kHz), variable test tones (1 Hz to 24 kHz in 1 Hz steps), intermittent tone, or white noise that can be applied in audio levels from 0 to -100 dB in 1 dB steps.

Zone plate
Compatible with the Rx2000, Rx1000, and Rx500 instruments
Intermittent tone and white noise generation
Audio phase invert

PHABRIX PHRXM-AG Specs

Inputs
Analyzer SDI Input
Label: SDI ANA IN
Supported Standards: SD-SDI, HD-SDI
Connector: BNC
Input Return Loss: Better than 15 dB (5 to 1,485 MHz) and 10 dB (1,485 to 2,970 MHz)
Maximum Input Voltage: +/- 2 V
Analyzer Optical Input
Label: SDI ANA OUT for optical video / audio input
Specification: SMPTE 424M, 292M, and 259M
Type: SFP Optical single RX/TX module (option PHRXM-OPTAG sold seperately)
Output
Analyzer SDI Output
Label: SDI ANA out for loop through of SDI ANA in
Connector: BNC
Output Impedance 75Ω terminated
Generator SDI Outputs
Label: SDI GEN OUT for generator output
Supported Standards: SD-SDI or HD-SDI
Connector: 2 x BNC
Level: +/- 400 mV
Generator Optical
Label: OPTICAL GEN for optical video/audio output
Type: SFP Optical single RX/TX module (option PHRXM-OPTAG, sold separately)
Specifications: SMPTE 424M, 292M, and 259M
Test Signals
Video
Resolution: 10 bits
Static Test Patterns: 32+ including full frame
User Defined: DPX, YUV, TGA, and BMP
Audio
Fixed tones: 17
Variable Tones: 1 Hz to 24 kHz in 1 Hz steps
Audio Levels: Variable 0 to -100 dB in 1 dB steps
Compatible With
Rx2000, Rx1000, and Rx500 instruments
