Vaddio WallVIEW Universal CCU System with PowerVIEW HD-30 PTZ Camera (NTSC)

BH #VAWVCCUHD305 • MFR #999-6977-000
Print

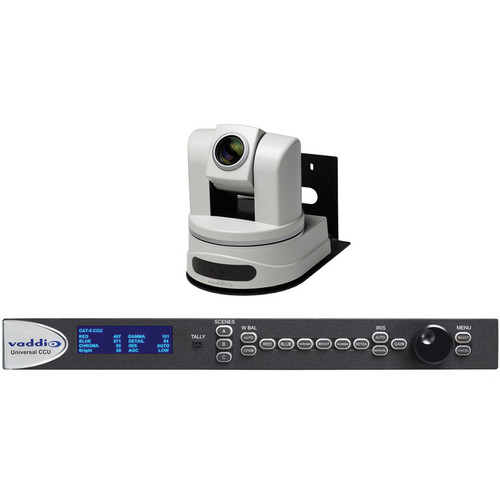

Vaddio WallVIEW Universal CCU System with PowerVIEW HD-30 PTZ Camera (NTSC)
Key Features
  • 1920 x 1080 i/p & 720p with HD/SD Output
  • 30x Optical Zoom Lens
  • HD Output in Analog Component & HDMI
  • SD Output in Analog Component
Suitable for conference rooms, Houses of Worship, and broadcast applications, the Vaddio WallVIEW Universal CCU System with PowerVIEW HD-30 PTZ Camera shoots in a variety of U.S. & European compatible frame rates. Equipped with a 30x power zoom the camera is suitable for large interior locations. The included CCU provides you with expanded capabilities beyond just pan, tilt, and zoom. The camera shoots Full HD at 1080p or 1080i, as well as 720p. The CCU unit outputs over HD video HDMI or analog component connections.
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

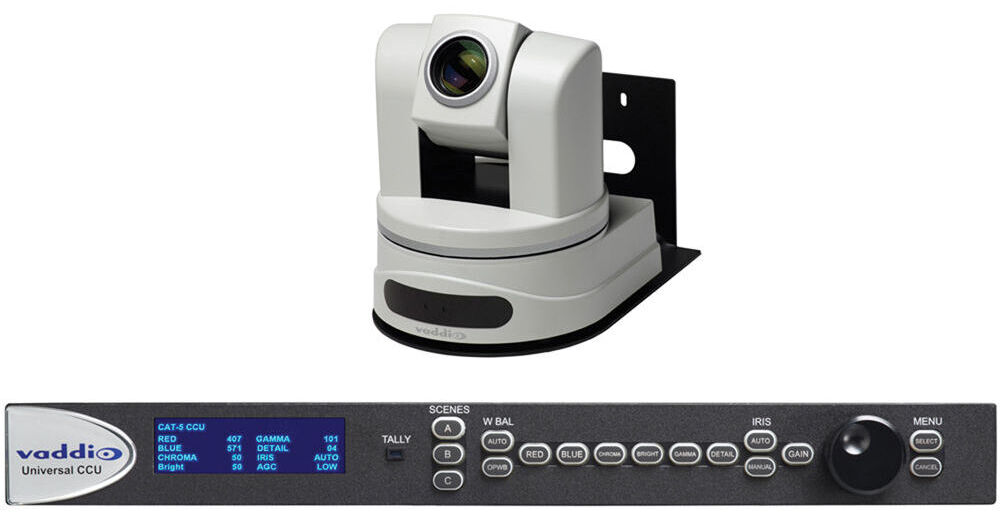

Vaddio WallVIEW HD-30 Overview

Suitable for conference rooms, Houses of Worship, and broadcast applications, the Vaddio WallVIEW Universal CCU System with PowerVIEW HD-30 PTZ Camera shoots in a variety of U.S. & European compatible frame rates. Equipped with a 30x power zoom the camera is suitable for large interior locations. The included CCU provides you with expanded capabilities beyond just pan, tilt, and zoom. The camera shoots Full HD at 1080p or 1080i, as well as 720p. The CCU unit outputs over HD video HDMI or analog component connections.

The CCU connects to the camera using the included CCU slot card that is inserted into the camera. The CCU enables the adjustment of white balance, color, brightness, gamma, chroma, detail, iris, and gain function with the twist of a simple knob. User defined adjustments can be stored on three scene store buttons. Using the CCU, you can make adjustments to the camera from up to five hundred feet away.

HD-30 Camera Front View
Camera and Zoom Lens: The 30X optical zoom lens is built around a (1/2.8 type) high-speed MOS image sensor with a total of 2.2 Mp for precise HD video image acquisition
Red Tally Light: Illuminated when the camera receives a command from an external controller
IR Sensors: Built into the front of the HD-30 Camera to receive IR signals from the IR remote control supplied with the camera
Blue Power Light: Illuminated when the camera is turned on
HD-30 Camera Rear View
RS-232 IN & IR Out: The RS-232 port accepts modified VISCA protocol for camera control, as well as transmits IR signaling received by the IR receivers, which can be transmitted to third-party remotes
Dip Switch Settings: Settings for IR remote, baud rate, and image flip can be configured on these switches
HD Video Select: A rotary switch allows the user to choose the component HD output video resolution and format
HDMI Output: Feeds out HD digital video only (no copy protect or device communication is required) and the HDMI output is optimized for high definition video signals
YPbPr Output: Component HD video (YPbPr) is output through the DE-15 connector; YPbPr and HDMI signals have simultaneous output; limited SD resolutions are supported
EZ Power HD Video Port: This RJ-45 connector is used with the Quick-Connect SR-type interface to supply power and return HSDS (differential) video from the camera
Slot for Optional Cards: Optional slot cards can be plugged into the rear panel slot of the HD-30 Camera
CCU
The Cat-5 Universal CCU uses HSDS (high speed differential signaling), an active video transmission system, to deliver high quality HD video over standard Cat-5 cabling up to 500' (152.4m) with virtually no loss in video quality or latency. It features SD/HD-SDI, HDMI and HD Analog component (YPbPr) outputs, which are all simultaneously active and supports resolutions from 1080p 60 to 480i. The Universal CCU features blue back-lit LED screen that displays up to eight parameters at a time in addition to the camera's model number so the interrelationship of the controls can easily and quickly be read and understood

Vaddio WallVIEW HD-30 Specs

Zoom
30x optical
Focal Length
4.3 to 129.0 mm
F-Stop
f/1.6 to f/4.7
Image Sensor
1/2.8-type MOS, 2.2 Mp, Progressive Scan
Minimum Illumination
Color: 0.4 lux (F1.6, 1/30 sec, 50 IRE, Gain: High)
B&W: 0.04 lux (F1.6, 1/30 sec, 50 IRE, Gain: High)
Video Resolution
HD
1080p 25, 29.97, 50, 59.94
1080i 50, 59.94
720p 50, 59.94

SD
480p 59.97
576p 50
Video Output Format
HDMI (YCbCr for HDMI and sRGB for DVI), Analog Component (YPbPr)
HSDS (Power, Differential HD Video & RS-232 Control)
Signal to Noise Ratio
>50 dB (AGC: Off)
Pan Range
Pan: 170˚ to -170˚
Tilt: 90˚ to -30˚
Preset Positions
16 (internal) and 6 recalled via the included Vaddio IR Remote Commander
Image Controls
Red & Blue Gain, Detail, Chroma, Gamma, Pedestal, Iris, and Gain (Controls available through RS-232 Control and Quick-Connect CCU and Slot Card)
Tally Light
Available through RS-232 control
Video Selection Button
16-Position Rotary Switch: Used to set HD video resolution output
Camera
Settings
10-Position Dip Switch: Settings for IR select, Baud Rate 9600, Image Flip, Unpublished Functions
Dimensions
7.8 x 6.7 x 7.1" / 198.4 x 169.4 x 179.3 mm
Weight
5.6 lb / 2.6 kg
Interface
Connectors
  • Power: 5.5 mm OD x 2.5 mm ID
  • RJ-45: Supplies 36 volts to EZIM slot card
  • RS-232 In: In RJ-45 connector (accepts RS-232 from ProductionVIEW or other nn-daisy-chain control systems
  • RS-232 Out: In RJ-45 connector (passes RS-232 and sync video feet to camera EZIM
  • Tally: 2-pin Phoenix type connector
  • Video from Camera RJ-45: Accepts differential video from EZIM Slot Card
Video Output
  • HD-YPbPr on DE-15F connector
  • HDMI on HDMI-F connector
  • HD-SDI on Edge mount carrier class, Gold BNC-F (supports 3GB/s Single Link 1080p 60 HD-SDI)
Video Adjustments
Y-Gain
Skew
Maximum Distance
Cat 5: 500' / 152 m
Dimensions
1.7 x 18.9 x 7" / 43.7 x 480 x 178 mm
EZCamera Interface Module (EZIM)
Connectors
2 x RJ-45 (Power & HSDS Video)
Wall Mount Solution
Dimensions
CONCEAL Wall Mounting System: 5.12 x 6.75 x 10.00" / 130.04 x 171.45 x 254.00 mm
Weight
2.4 lb / 1.1 kg
Packaging Info
Package Weight
21.4 lb
Box Dimensions (LxWxH)
20.58 x 20.34 x 14"
